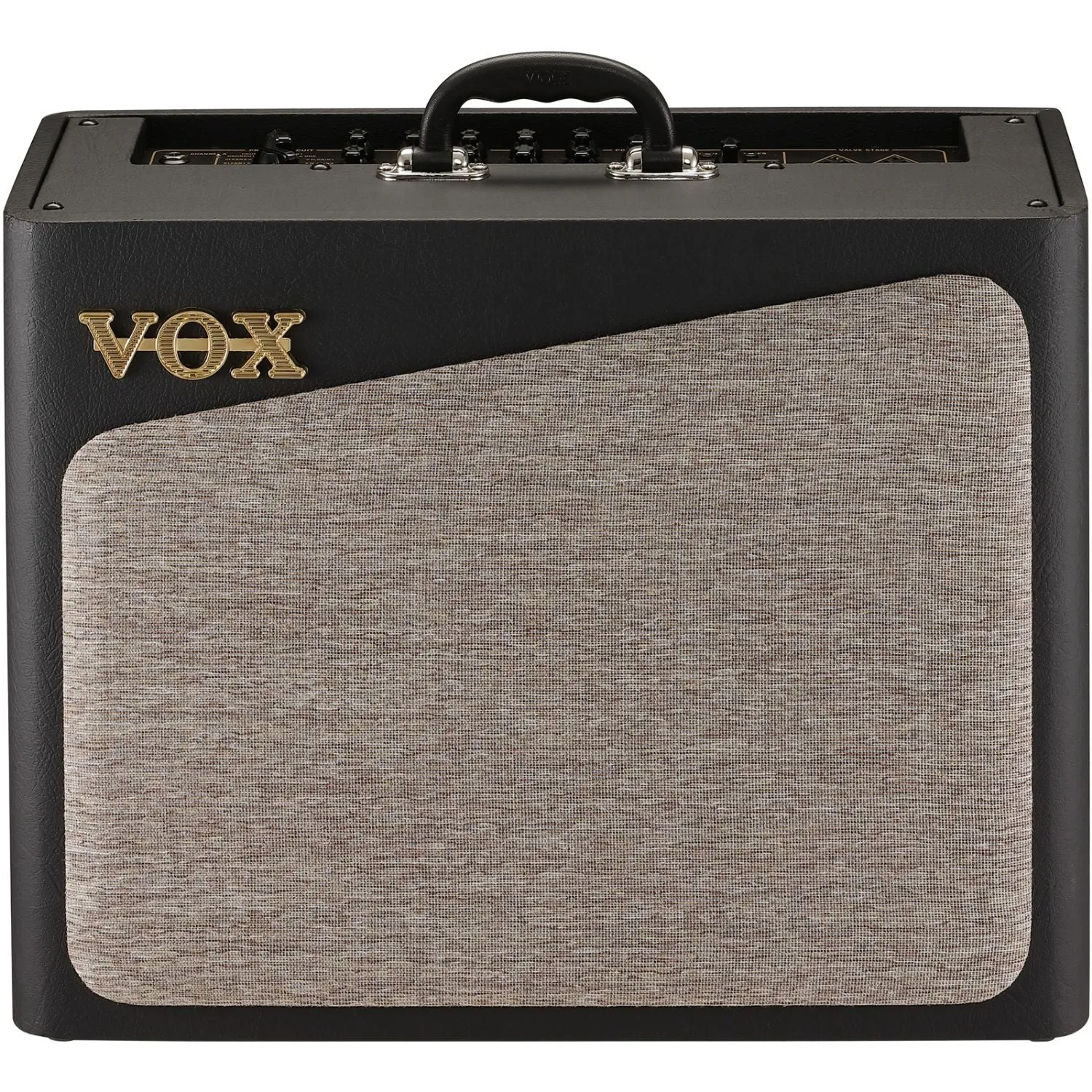

Perfect for the studio or a small club, the AV30 is a fully-featured analog amp that packs decades worth of tones into a compact package. The AV30’s unique multi-circuit analog pre-amp utilizes a 12AX7 tube to provide a full complement of clean, crunch, overdrive, and high gain tones that can be tailored to your liking via the Bright and Fat switches. These classic tones are further enhanced by a customizable, tube equipped analog power section and a unique, sealed speaker enclosure for improved resonance. Rounding out the feature set are three, analog-voiced digital effects including Chorus, Delay & Reverb. The AV30 from VOX is an incredibly versatile amplifier that is packed with pure, analog tone.

OUTPUT POWER
30 Watts RMS
4 Ohms

SPEAKER
1 x 10″ Vox Original

INPUTS
1 x Normal Input Jack
1 x Foot Switch Jack
1 x FX Return Jack
1 x Aux Input Jack

OUTPUTS
1 x External Speaker Jack
1 x FX Send Jack
1 x Headphone Jack

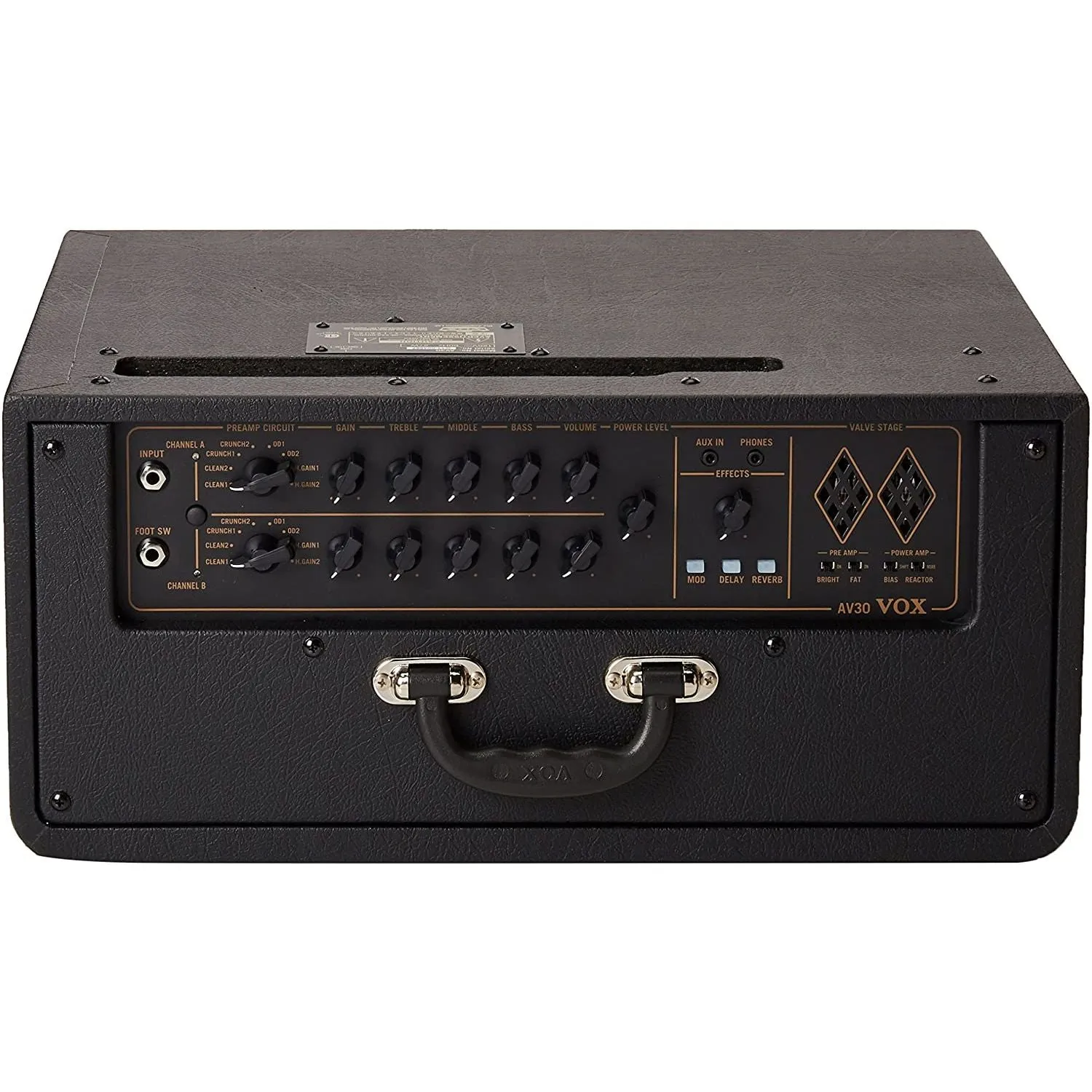

CONTROLS
Master Power Level, Effects Level, Mod/Delay/Reverb Selectors, Preamp Bright, Preamp Fat, Power Amp Bias, Power Amp Reactor
Channel A: Volume, Gain, Bass, Middle, Treble, Preamp Selector
Channel B: Volume, Gain, Bass, Middle, Treble, Preamp Selector

TUBE COMPLIMENT
2 x 12AX7

EFFECTS
Modulation
Delay
Reverb

DIMENSIONS (W X D X H)
513 x 247 x 474 mm | 20.20 x 9.72 x 18.66 inches
12.0 kg | 26.46 lbs

ACCESSORIES (SOLD SEPARATELY)
VFS2 Foot Switch
VFS5 Foot Switch
