Name: Prophet Rev2 8 Voice
SKU: 132546

A Modern Classic Reinvented

This 8 Voice version of the Rev2 can be upgraded to 16 voices if you decide to for and extra $595.

The Prophet Rev2 is Dave Smith’s reimagining of his Prophet ’08 poly synth — a modern classic that has appeared on countless recordings and stages since its debut in 2007. As Dave puts it, “The Prophet Rev2 is the realization of our effort to enhance and improve everything we could about the original design — all at a more accessible price.”

The Prophet Rev2 retains all of the key features of the Prophet ’08 and expands on them. It has twice the polyphony, twice the mod matrix, waveshape modulation on all waveforms, digital effects per layer in stacked or split voice mode, a polyphonic step sequencer per layer, and more. The result is a true analog powerhouse.

Best of all, you can download any of the many existing libraries of Prophet ’08 sounds and they will not only sound identical, but can be enhanced with the new features.

8-Voice Polyphony

Bold Sound

The Prophet Rev2 gets its bold, punchy sound from its 2/4 pole, low-pass, resonant Curtis filters per voice. These are the same filters used not only in the Prophet ’08, but in many classic instruments of the 70’s and 80’s. A separate Audio Mod control adds additional harmonic complexity and movement.

Waveshape Modulation

A powerful new feature unique to the Prophet Rev2 is waveshape modulation. You can now vary the “pulse width” of any of the four waveforms (sawtooth, saw tri, triangle, square). Using the Shape Mod control, you can manually dial in a desired waveshape width or use an LFO or other mod source for continuously shifting timbre. Even single-oscillator sounds take on new depth and dimension. The tonal possibilities are vast.

Effects Per Layer

The effects section provides reverb, delays (standard and BBD), chorus, phase shifter, ring modulation, and distortion. In stacked or split voice mode, you can apply a different effect to each layer. Effects parameters can be modulated through the Mod Matrix.

Extended Mod Matrix

Also present from its predecessor is an easy-to-assign Mod Matrix, now twice as big, with 8 individual slots and many more sources/destinations. It’s a veritable sound designer’s playground.

Poly Step Sequencing

The polyphonic step sequencer allows up to 64 steps and up to 6 notes per step. You can create a different sequence for each layer when you are working in stacked or split voice mode, making it a powerful tool for composition or performance. The sequencer also functions as a modulation source in gated mode, allowing you to create up to 4 different 16-step sequences for complex modulation. Sequences allow ties and rests, and can sync to an external MIDI clock. The arpeggiator features note repeats, re-latching, and can be synced to external MIDI clock, as well.

Per-Knob Programmability

The knob-per-function front panel offers instant access to Prophet Rev2 functions. Included are 512 permanent factory programs and 512 rewritable user programs.

Eminently Playable

All of this polyphonic power is packed into a five-octave, premium-quality, semi-weighted keyboard with velocity and channel aftertouch. Other road-worthy features include an integrated power supply, USB support, and a crisp OLED display, making the Prophet Rev2 an ideal instrument for gigging or recording, and an analog powerhouse like no other.

Prophet Rev2 Specifications

OSCILLATORS

2 digitally controlled analog oscillators (DCOs) per voice (plus sub octave on oscillator 1) with selectable sawtooth, triangle, saw/triangle mix, and pulse waves (with pulse-width modulation)
Glide (portamento): separate rates per oscillator
White noise generator
Analog VCAs
Hard sync

FILTERS

1 analog Curtis low-pass filter per voice, selectable 2- and 4-pole operation (self-resonating in 4-pole mode)

ENVELOPES

3 envelope generators: filter, VCA, and assignable (four-stage ADSR delay); Envelope 3 can loop.

SEQUENCER

Polyphonic step sequencer with up to 64 steps (6 notes per step), and ties and rests. Separate 16 x 4 gated step sequencer. Each layer can have a separate sequence.

LFOS

4 LFO’s with key sync per LFO

MODULATION

8-slot modulation matrix

ARPEGGIATOR

Programmable arpeggiator with up, down, up down, random, assign modes
Selectable note value: 16th note, 8th note triplet, 8th note, dotted 8th note, quarter note
One, two, or three octave range
Re-latching arpeggiation
Note repeat

CONTROLS

5-octave keyboard with semi-weighted action, velocity, and aftertouch
52 knobs and 20 buttons enable deep and comprehensive editing with little to no menu diving.
Spring-loaded pitch wheel and assignable mod wheel

MEMORY

512 Factory Programs (4 banks of 128) and 512 fully editable User Programs with 2 layers (2 separate sounds) in each Program

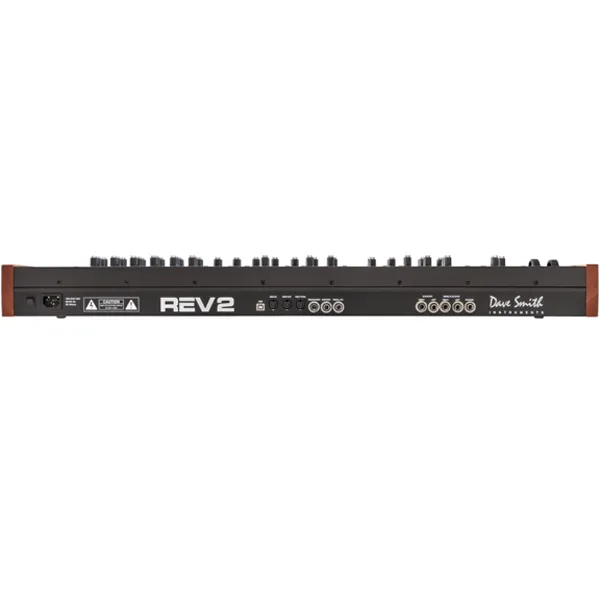

IN/OUT

MIDI In, Out, Thru
Main stereo audio output: 1/4″ unbalanced
Output B stereo audio output: 1/4″ unbalanced
Sustain pedal input: accepts normally on or normally off momentary footswitch.
Pedal/CV input: responds to expression pedals or control voltages ranging from 0 to 5 VDC (protected against higher or negative voltages).
Headphone output: 1/4″ stereo phone jack.

POWER

IEC AC power inlet for internal power supply
Operates worldwide on voltages between 100 and 240 volts at 50 to 60 Hz
Power consumption: 22 watts maximum (17 watts for 8-voice configuration; 22 watts for 16-voice configuration)

PHYSICAL SPECS

Oiled African mahogany wood end panels
Dimensions: 12.70″ (32.26 cm) W x 35.12″ (89.20 cm) L x 3.80″ (9.65 cm) H (2.30″ at front edge; the feet account for 0.25″ of the total height)
Weight: 20.5 lbs. (9.3 kg)
