Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information
KEY FEATURES
- Amazing drum machine with authentic analog/digital sound engine to create classic sound performance
- 11 original drum sounds with additional parameters and global accent capability
- Powerful 64-step drum sequencer supports poly-meter, step-repeat, note-repeat, real-time triggering, track-mute and track-solo
- 10 independent analog outputs for external processing or recording your rhythms as multi-track audio
- Integrated FX bus features Wave Designer and dual-mode Analog Filter with per voice assignment
- Live recording, editing and playback of analog filter cutoff via automation
- Storage of up to 16 songs and 256 patterns, all of which can be imported/exported during playback for unlimited songs and patterns
- Pattern Mode allows arrangement of patterns into full songs and setting number of repeats per song part
- Song Mode allows chaining songs together for live sets and expanded compositions
- Unique Auto Scroll feature enables improvisation in all modes
- Comprehensive MIDI In/Out/ Thru plus USB implementation for synchronization and connection to external devices
- Sync options include USB, MIDI, Clock and Internal for maximum versatility
- Encoder for editing parameters such as Tempo, Swing, Probability, Flam and Random
- High-visibility LED display for easy editing of program parameters
- Powerful headphone and main outputs on 1/4" connectors
DESCRIPTION

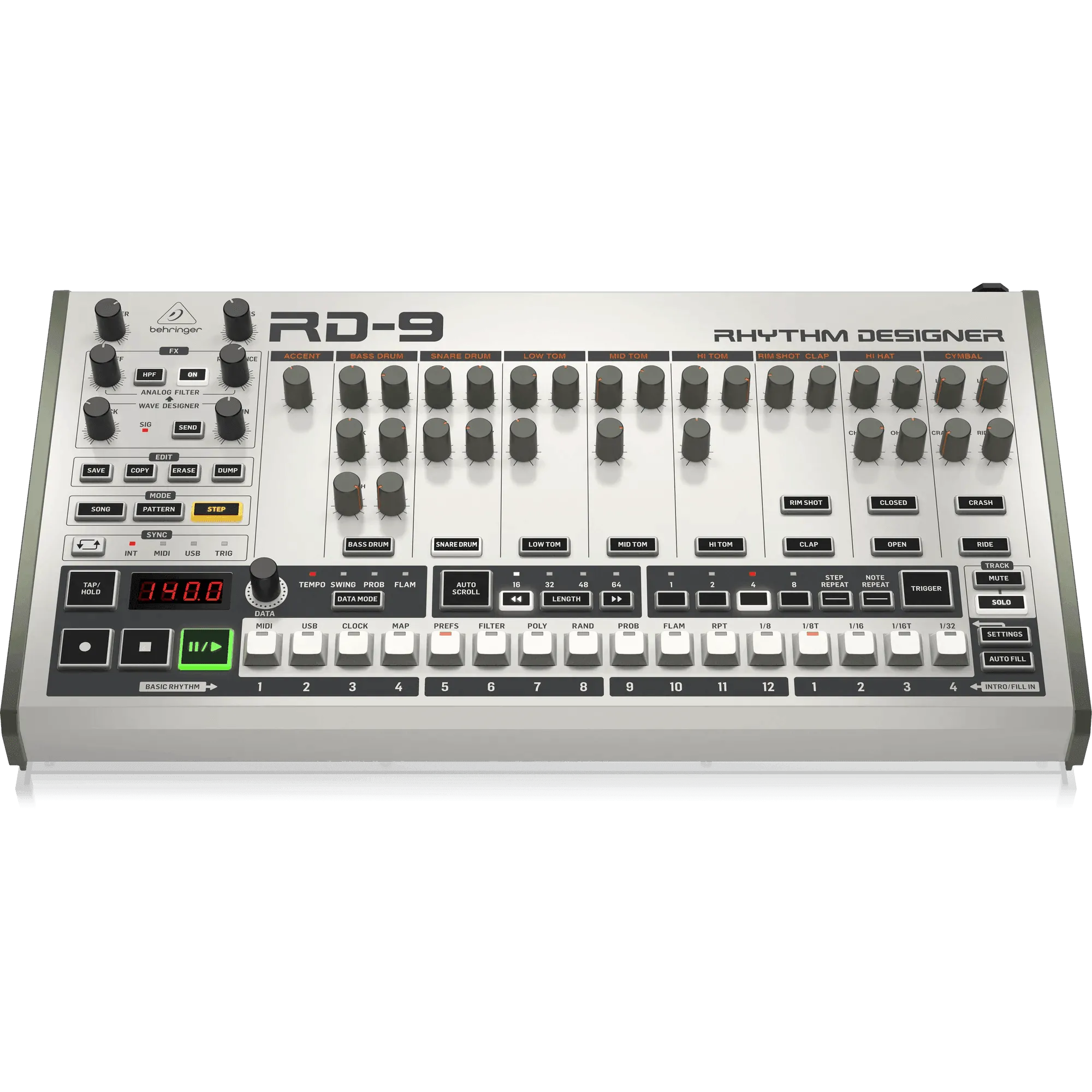

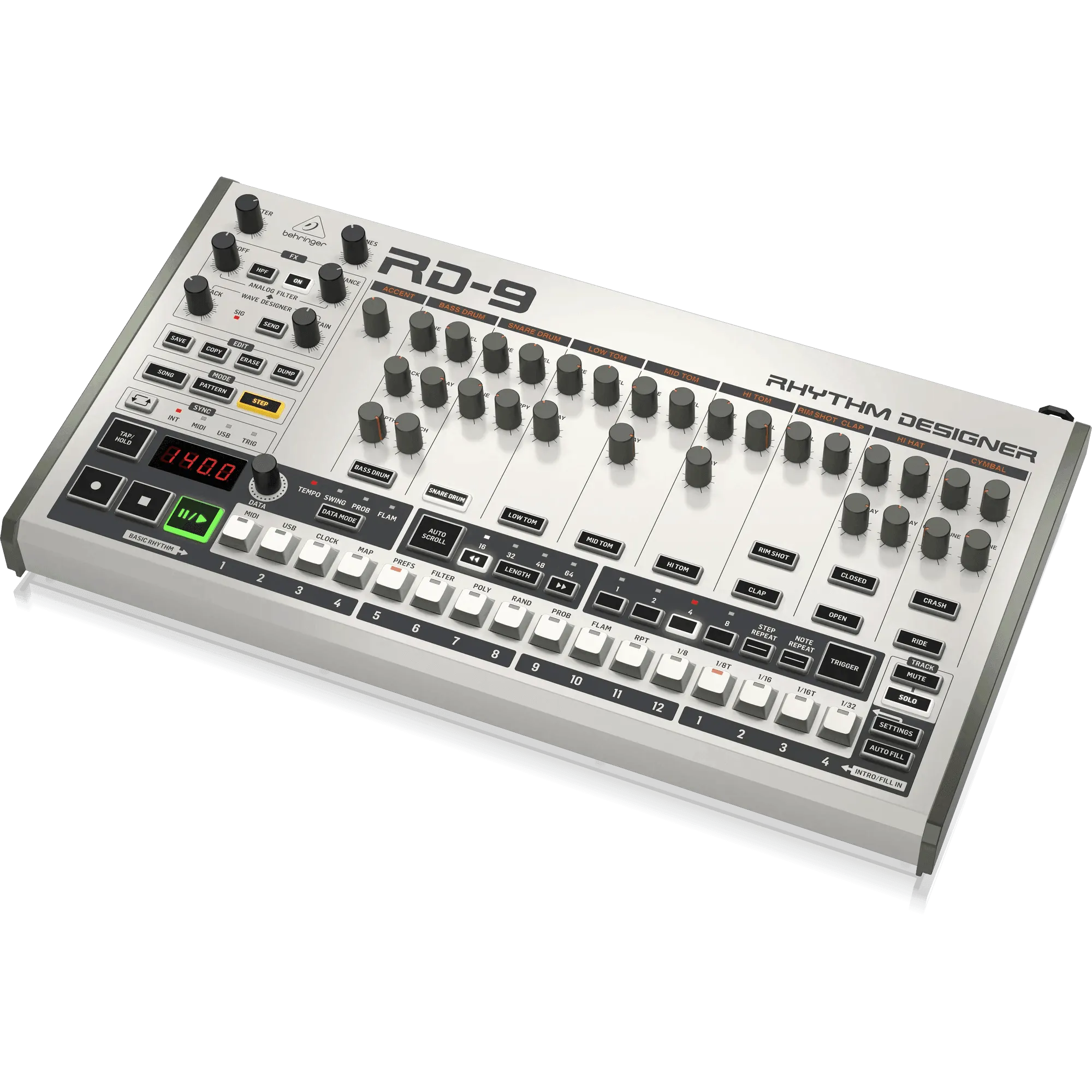

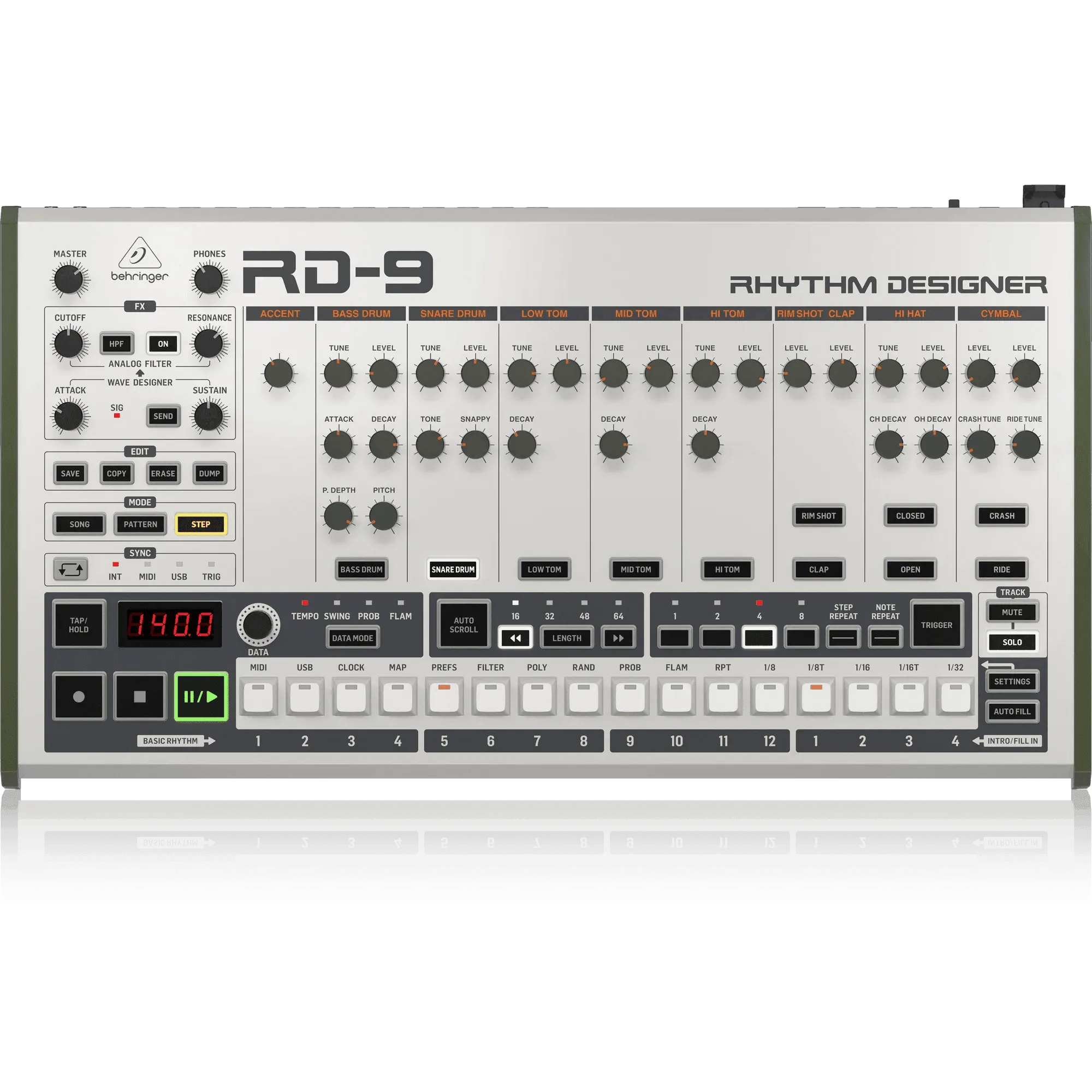

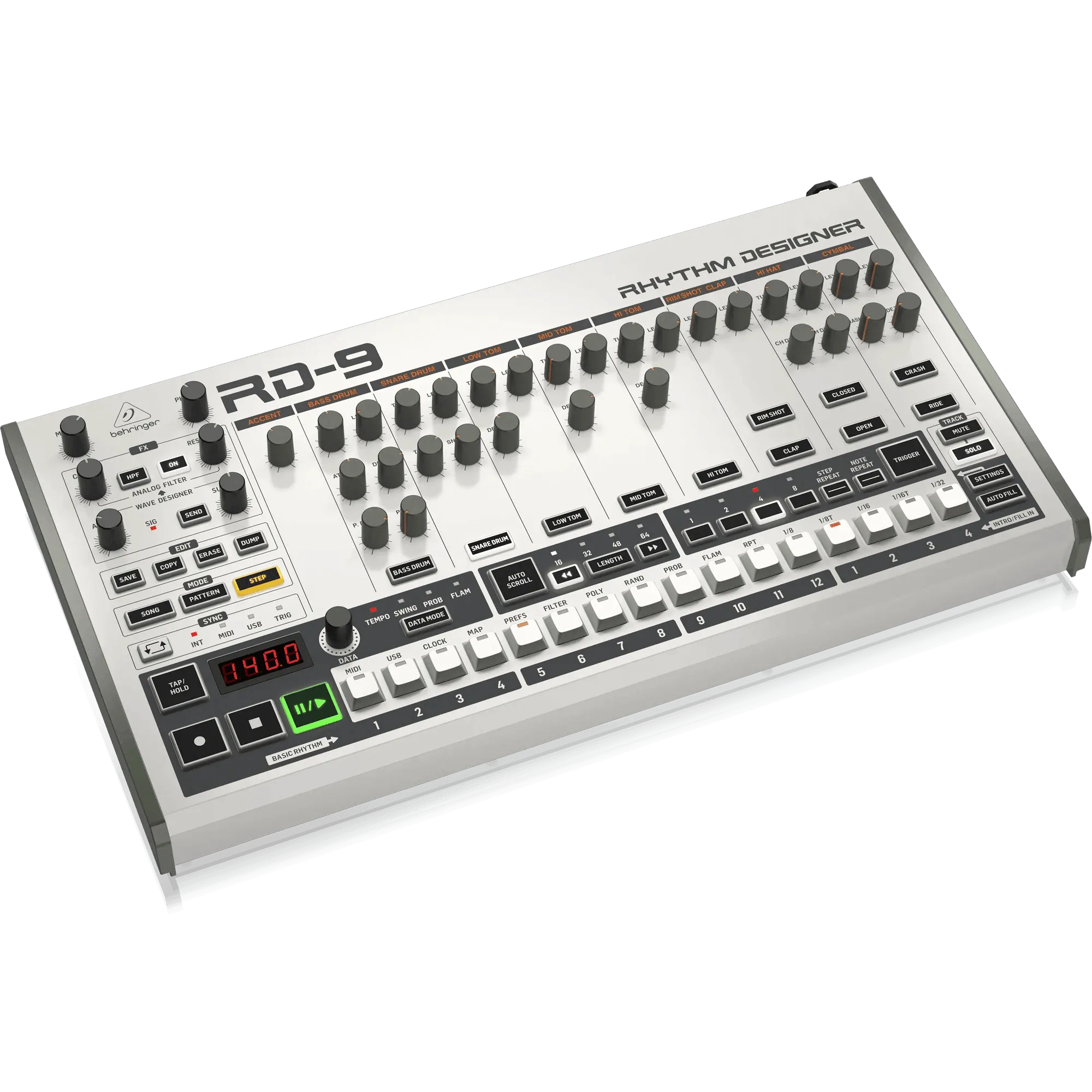

The RHYTHM DESIGNER RD-9 provides all the tools you need to become a master beat-maker, including: 11 drum voices; a 64-step sequencer; wave designer and dual-mode filter – for a full-fledged drum machine that’ll shake the house! Whether you’re new to drum programming or a seasoned pro looking to upgrade your setup, the RD-9 has everything you need to step up to the big leagues.
SPECIFICATIONS
Voices
| Number of sounds | 11 |
| Type | |
| Analog | Bass drum, Snare drum, Low tom, Mid tom, Hi tom, Rim shot, Clap |
| Digital (Sampling) | Closed hat, Open hat , Crash, Ride |
| Number of simultaneous voices | 10 |
| Sound controls | |
| Accent | Level |
| Bass drum | Tune, level, attack, decay, pitch, pitch depth |
| Snare drum | Tune, level, tone, snappy |
| Low, mid, hi tom | Level, tuning, decay |
| Rim shot / clap | Level |
| Hi hat | Tune, level, ch decay, oh decay |
| Cymbal | Crash level, ride level, crash tune, ride tune |
| Select buttons | 11 Voice select buttons |

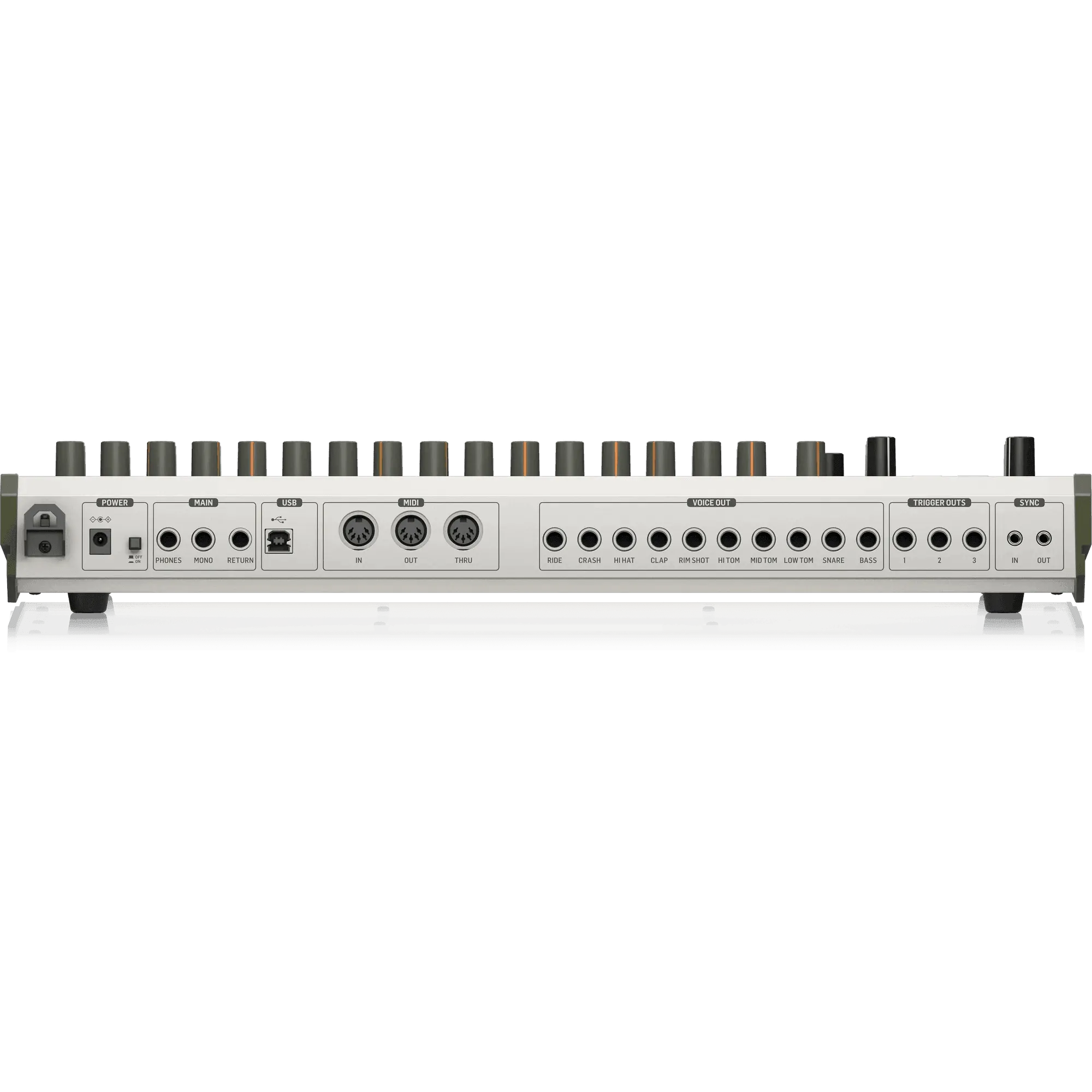

Connectivity
| Outputs | |
| Phones | 1 x 1/4" TRS, stereo, 8 Ω impedance |
| Mono | 1 x 1/4" TRS, servo-balanced |
| Voice out | 10 x 1/4" TS, unbalanced |
| MIDI In, Out & Thru | 3 x 5-pin DIN |
| Trigger outs | 3 x 5 V, 2 ms pulse |
| Sync in / out | 2 x 1/8" TRS (Tip is clock and Ring is the start message) |
| USB | Class compliant USB 2.0, type B |
| Supported operating systems | Windows 7 or higher Mac OS X 10.6.8 or higher |
| Volume controls | Master, phones |
| Return (Input) | 1 x 1/4" TRS, balanced |
